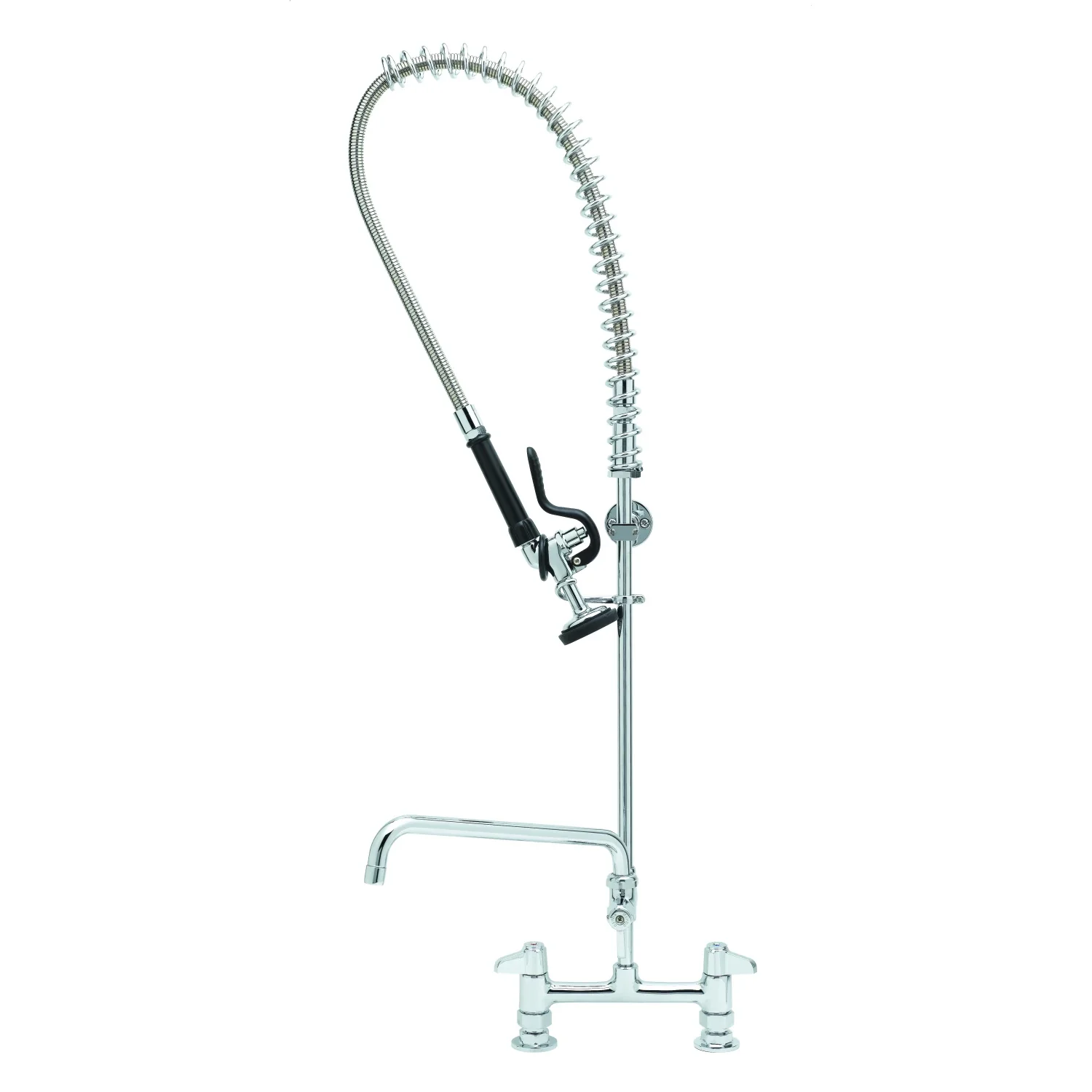

T&S Pre-Rinse Unit, 8" Deck Mount with 12" Swing Nozzle & 5SV Spray Valve 5PR-8D12

Spec Drawing

The T&S Pre-Rinse Unit delivers professional-grade performance for high-volume food service operations. This 8" deck mount assembly features a polished chrome-plated brass body with a 12 1/8" laminar flow nozzle and 18" riser for optimal reach and control. The 44" flexible stainless steel hose with heat-resistant handle connects to a 1.15 GPM spray valve, while ceramic cartridges and lever handles ensure durability and precise water management. Includes 6" adjustable wall bracket, spray valve holder, and overhead spring for secure installation. Equipped with 1/2" NPT female inlets, in-line check valves, and certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 standards. Meets 2019 DOE PRSV Class II compliance for water efficiency.

• Nozzle Flow: 4.29 GPM (16.24 L/min)

• Pressure Max: 125 psi (8.62 bar)

• Pressure Min: 20 psi (1.38 bar)

• Spray Valve Flow: 1.15 GPM (4.35 L/min)

• Temperature Max: 140 F (60℃)

• Temperature Min: 40 F (4.44℃)
