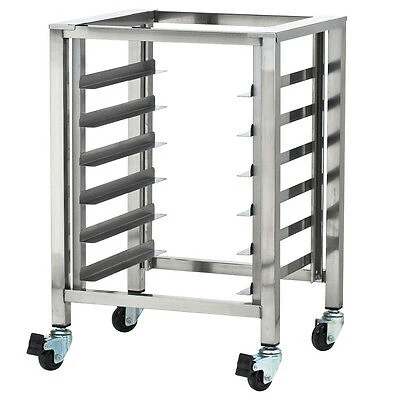

Turbofan - SK32 Stainless Steel Stand

All stainless steel welded frame oven stand for Turbofan E32D,
E32T and G32D Series ovens
6 position tray runners standard
3” / 76mm diameter wheel swivel castors standard with 2 front
castors with dual swivel and wheel
Welded 1½” and 1¼” square tube front and rear frames
Welded rack supports/side frames
4 dia. 3” / 76mm swivel castors with 2 front castors dual wheel
and swivel lock
Top frame oven supports suit Turbofan E32D, E32T and G32D
Series oven mounting
Supplied CKD for assembly on site
External Dimensions (SK32 Oven Stand)
Width 287/8” / 735mm
Height 345/8” / 880mm
Depth 255/8” / 650mm
Net Weight (SK32 Oven Stand)
40lbs / 18.5kg
Packing Data (SK32 Oven Stand)
51lbs / 23kg
3.5ft³ / 0.1m3
Width 325/8” / 830mm
Height 35½” / 900mm
Depth 6” / 152mm
INSTALLATION CLEARANCES
Rear 2” / 50mm
LH Side 2” / 50mm
RH Side* 3” / 75mm
* For fixed installations a minimum of 20” / 500mm is required
for service
CLEARANCE FROM SOURCES OF HEAT
A minimum distance of 12” / 300mm from the appliance sides
is required
